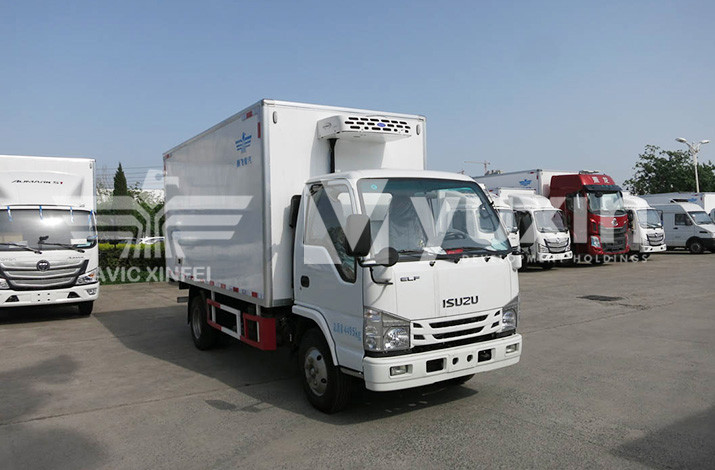

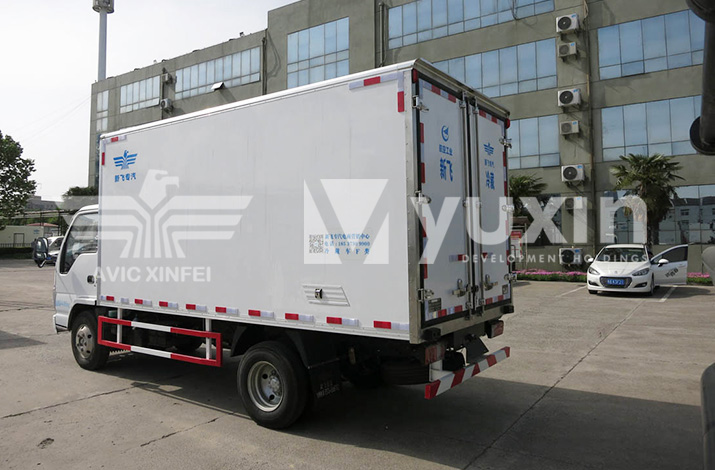

| Refitted Vehicle Main Technical Specifications | ||||
| Vehicle Model: | XKC5041XLC6Q | |||
| Vehicle Type | Light Truck | |||
| Vehicle Manufacturer | AVIC Henan Xinfei Special Purpose Vehicle Co., Ltd. | |||
| Vehicle Brand | AVIC XINFEI | |||
| Vehicle Overall Size (LxWxH) | mm | 5995 | 2260/2160/2110/2060/2040 | 3150/3080/3020/3000 |
| Box Internal Size (LxWxH) | mm | 4150/4100 | 2100/2000/1950/1900/1890 | 2000/1930/1870/1850 |
| Box Volume | m³ | 14.3~17.43 | ||
| Panel Thickness | mm | 55~120 | ||
| Interior/Outer FRP Lining | Food Grade, Light White | |||
| Insulation Material | PU | |||
| Insulation Material Density | 40kg/m³ (bottom panel), 35kg/m³ (other panels) | |||
| Thermal Conductivity | W/m.K | 0.023 | ||
| GVW | kg | 4495 | ||
| Curb Weight | kg | 3200 | ||
| Payload Weight | kg | 1165 | ||
| Fuel Consumption | l/100km | 11.3 | ||
| Maximum Speed | km/h | 105 | ||
| Rated Cab Passengers | person | 2 | ||
| Front/Rear Suspension | mm | 1015/1620 | ||
| Approach/Departure Angle | ◦ | 14/16 | ||
| Chassis Manufacturer | ChongQing ISUZU | |||
| Chassis Model | QL1040BUHAY | |||
| Transmission Type | Manual | |||
| Engine Manufatcurer | ISUZU | |||
| Engine Model | 4KH1CN6LB | |||
| Engine Power | 88kW | |||
| Fuel Type | Diesel | |||
| Emissoin Standard | China VI | |||
| Steering Type | LHD or RHD | |||
| Tyre Specification | 7.00R16LT8PR | |||
| Tyre QTY | 6 pcs | |||
| Antilock Brake System (ABS) | YES | |||
| Rear Door - standard | Rear Swing Dual Doors | |||
| Options: | 1. Checkered aluminum flooring & skirt plates; | |||
| 2. Aluminum T-flooring & checkered aluminum skirt plates; | ||||
| 3. Side single door and/or dual doors; | ||||
| 4. Cargo side track, rails, shelves; | ||||
| 5. Aluminum-alloy meat hanging tracks & 304# stainless steel hooks; | ||||
| 6. Thermo King, Carrier, AVIC Xinfei, Yuhwa Thermo brands TR units. | ||||
| 7. Others. | ||||
