| Refitted Vehicle Main Technical Specifications | ||||
| Vehicle Model: | XKC9400XLC03 | |||
| Vehicle Type | Refrigerated Vehicle - Semi-trailer Truck | |||
| Vehicle Manufacturer | AVIC Henan Xinfei Special Purpose Vehicle Co., Ltd. | |||
| Vehicle Brand | AVIC XINFEI | |||
| Vehicle Overall Size (LxWxH) | mm | 13450/13580/12500 | 2600 | 3995 |
| Box Internal Size (LxWxH) | mm | 13260/13390/12310 | 2420 | 2410/2510 |
| Box Volume | m³ | 71.8~81.3 | ||
| Panel Thickness | mm | 55~120 | ||
| Interior/Outer FRP Lining | Food Grade, Light White | |||
| Insulation Material | PU | |||
| Insulation Material Density | 40kg/m³ (bottom panel), 35kg/m³ (other panels) | |||
| Thermal Conductivity | W/m.K | 0.023 | ||
| GVW | kg | 40000 | ||
| Curb Weight | kg | 8800/8500 | ||
| Payload Weight | kg | 31200/31500 | ||
| Fuel Consumption | l/100km | |||
| Maximum Speed | km/h | |||
| Rated Cab Passengers | person | |||
| Front/Rear Suspension | mm | -/3100, -/2480, -/2150, -/1530 | ||
| Approach/Departure Angle | ◦ | -/9 | ||
| Chassis Manufacturer | CIMC | |||
| Chassis Model | LA99403LxxxXKCxx | |||
| Transmission Type | ||||
| Engine Manufatcurer | ||||
| Engine Model | ||||
| Engine Power | ||||
| Fuel Type | ||||
| Emissoin Standard | ||||
| Steering Type | ||||
| Tyre Specification | 425/65R22.5-20PR, 425/65R22.5-18PR | |||
| Tyre QTY | 6 pcs | |||
| Antilock Brake System (ABS) | YES | |||

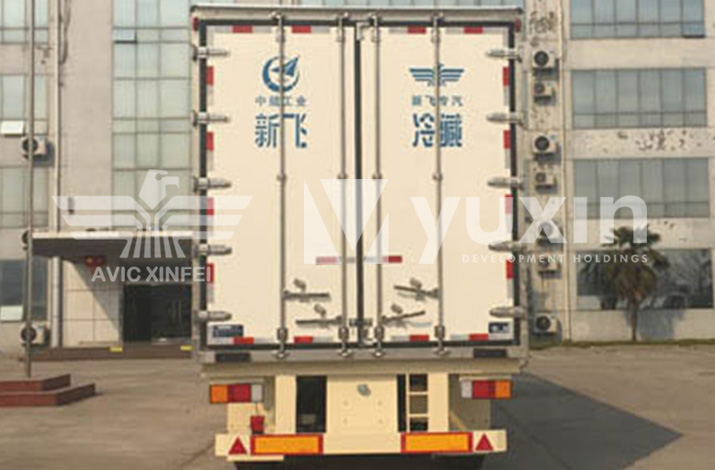

| Rear Door - standard | Rear Swing Dual Doors | |||
| Options: | 1. Checkered aluminum flooring & skirt plates; | |||
| 2. Aluminum T-flooring & checkered aluminum skirt plates; | ||||
| 3. Side single door and/or dual doors; | ||||
| 4. Cargo side track, rails, shelves; | ||||
| 5. Aluminum-alloy meat hanging tracks & 304# stainless steel hooks; | ||||

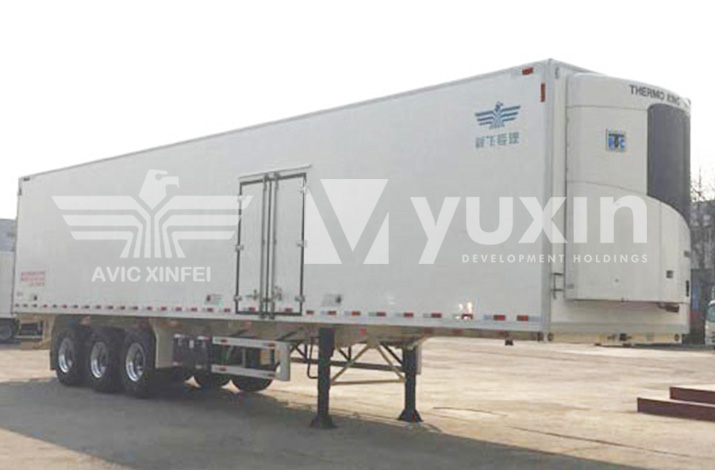

| 6. Thermo King or Carrier brands Reefer units. | ||||
| 7. Others. | ||||
